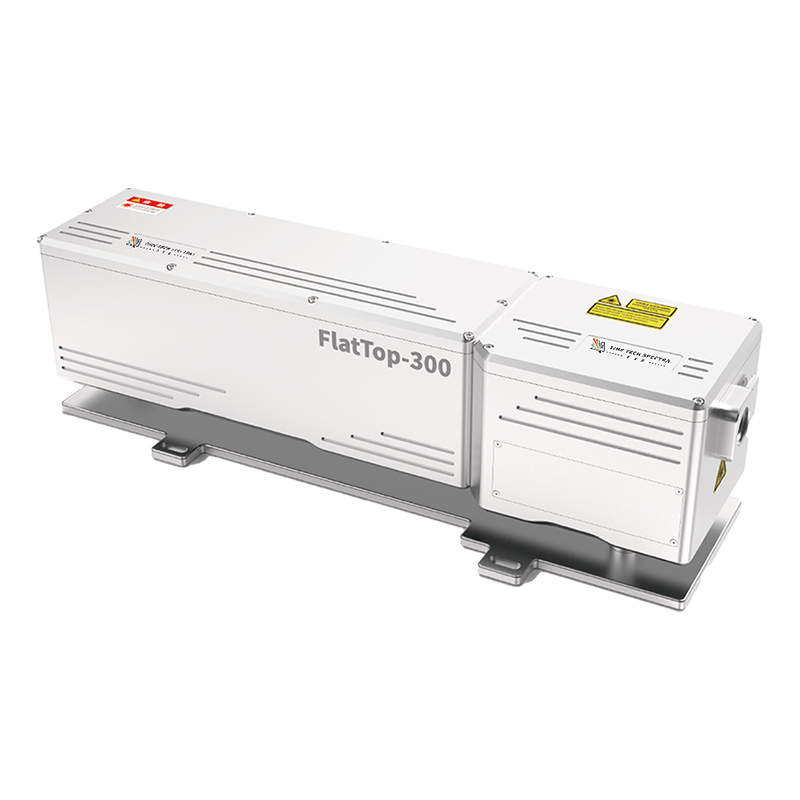

| The FlatTop series is a diode-pumped Nd:YAG nanosecond pulsed laser, which has the characteristics of high output energy, high frequency, good spot quality, high intelligence, compact structure, and easy maintenance. Utilizing a Gaussian resonator design, the lasers can deliver flat-top beam, meeting the cutting-edge needs of industry and scientific research. | |||||||||
Products Feature
High-energy and High-frequency Output: For example, the FlatTop - 300 model has a maximum single-pulse energy of 300mJ at a wavelength of 1064nm, and the repetition frequency is 100Hz - 1kHz, which can provide powerful laser energy and meet the demand for high-energy lasers in industrial processing and scientific research experiments.
Good Beam Quality: The divergence angle is <1mard, the spot size is appropriate (for example, the spot of FlatTop - 300 is 7mm), and the polarization purity is ≥99%, ensuring the concentration of laser energy and improving the processing and experimental effects. It has obvious advantages in fields such as laser cutting and spectral analysis.
Long Diode Life: The long life of the diode reduces the use cost and maintenance frequency, improves the stability and reliability of the laser, ensures long-term stable operation, and is suitable for large-scale production and long-term scientific research use.
High Customizability: It supports comprehensive customer originality customization services, and can adjust parameters and configurations according to customer needs. For example, the cooling method can be selected between water cooling and air cooling to meet the personalized needs of different application scenarios.
Specifications(1)
| Model | FlapTop-50 | FlapTop-150 | FlapTop-300 | FlapTop-600 | FlapTop-1000 | KHZ-1 | |||||
| Repetition frequency | 100 Hz | 1 KHz | |||||||||
Maximum single pulse energy at each wavelength | 1064 nm | 50 mj | 150 mj | 300 mj | 600 mj | 1 j | 10 mj | ||||
| 532 nm | 25 mj | 75 mj | 150 mj | 300 mj | 500 mj | 4 mj | |||||
| 355 nm | 15 mj | 45 mj | 100 mj | 200 mj | 350 mj | 2 mj | |||||
| 266 nm | 5 mj | 15 mj | 30 mj | 60 mj | 100 mj | 1 mj | |||||
| Pulse width | 8-10 ns | ||||||||||
| Angle of divergence | < 1 mard | ||||||||||
| Energy stability | < 0.7%@1064 < 1.5%@532 < 2.5%@355 < 4%@266 | ||||||||||
| Spot size | 5 mm | 7 mm | 9 mm | 2 mm | |||||||
| Jitter | < 2 ns | ||||||||||
| Polarization purity | ≥ 99% | ||||||||||
| Cooling method | Water(2) | ||||||||||
(1) This system parameter is set as the standard system configuration. Please contact us for customization services.
(2) Can be adjusted to air cooling based on requirements.
