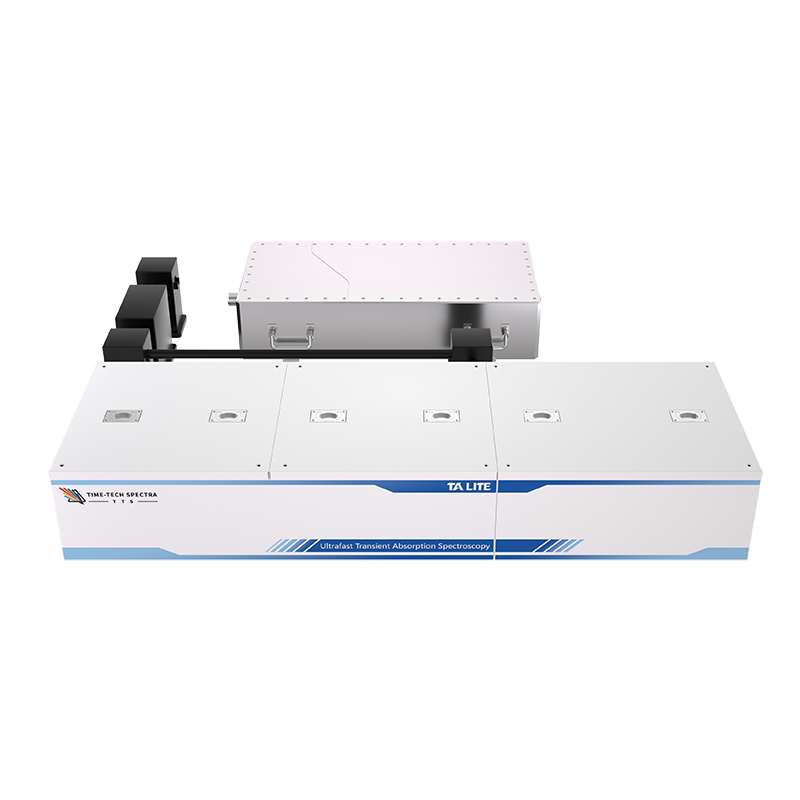

TA-LITE

The TA-LITE is the most cost-effective instrument in our TA lineup. Coming equipped with a 1030 nm fs-laser and able to excite with the second or third harmonic, and probing capabilities from 480-950 nm (extendable to 380 nm) the TA-LITE positions itself as a versatile instrument in any laboratory. The specially designed software makes the operation of the TA-LITE simple and powerful.

Spectral range: Vis, expandable to 380 nm.

Femtosecond laser (350 fs) with SHG/THG module

Excitation: 515 nm (2nd harmonic) 343 nm (3rd harmonic)

Inquire

Download datasheet

SPECIFICATIONS

Main
Spectral range	480-950 nm (extendable to 380 nm)
Mode	Transmission/reflection
Time window	4 ns
Sensitivity	≤0.1 mOD
IRF	≤1.5X pulse width
Sample protection	Solution, film, pouder
Software	Data acquisition, analysis, and fitting
Fs-Laser
Repetition rate	100 kHz
Pulse width	350 fs
Single pulse energy	50 μj
