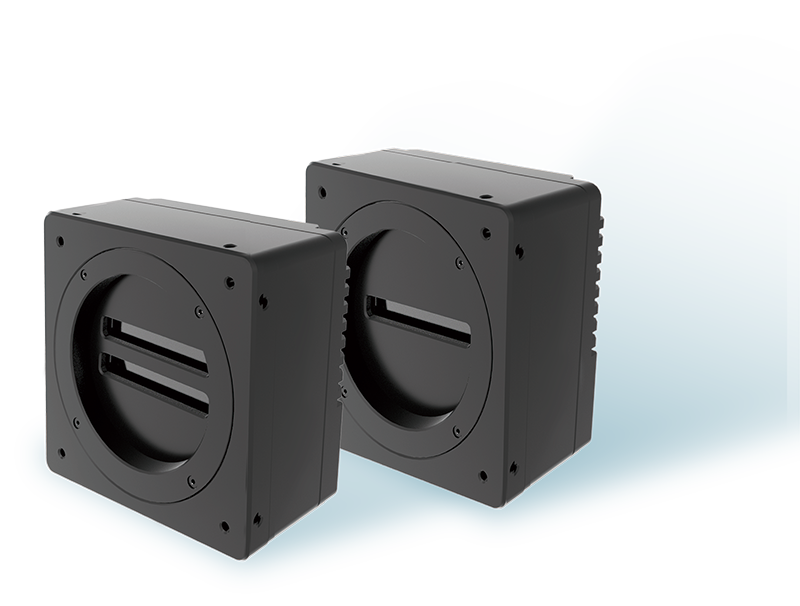

Zephyrus Series High Speed Detector

The Zephyrus series is specifically developed for detecting subtle intensity changes of strong

pulses in transient absorption spectroscopy. Its large full-well capacity enables accurate detection of high-intensity probe light. With sampling rates up to 100 kHz, nanosecond-level synchronous exposure, and a dual-line-array architecture, the detector significantly improves the signal-to-noise ratio while effectively reducing dark-current noise and suppressing interference caused by probe-intensity fluctuations. These features greatly enhance the accuracy and stability of transient absorption measurements.

Detection sensitivity:

down to 10⁻⁶ ΔOD

Ultra-high sampling rate:

up to 100 kHz

Multiple wavelengths available:

from visible to near-infrared

Optimized solutions available for

Ti: sapphire and Yb-based laser systems

Inquiry

Download datasheet

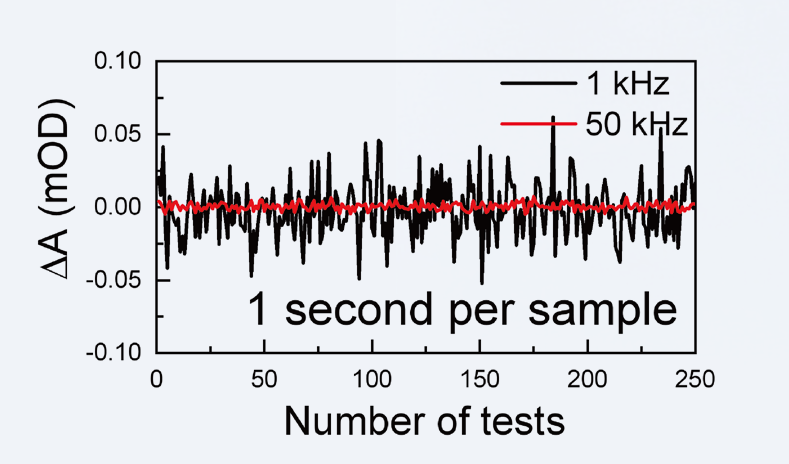

TA measurement precision

(1-second acquisition per test)

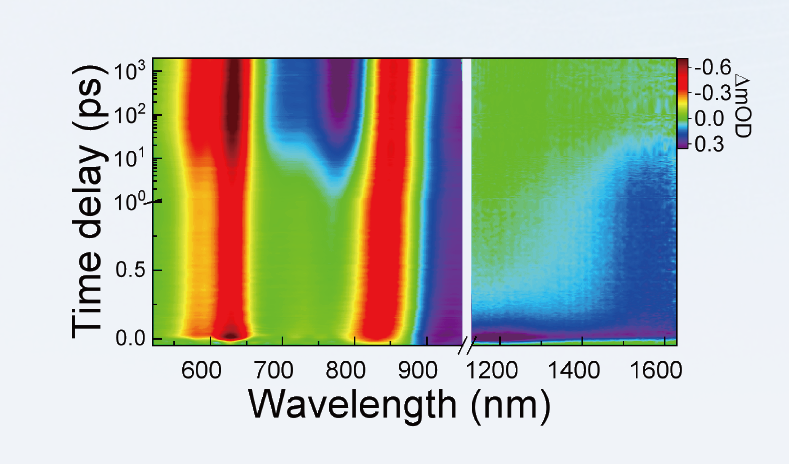

TA 2D contour plot of

organic photovoltaic thin-film

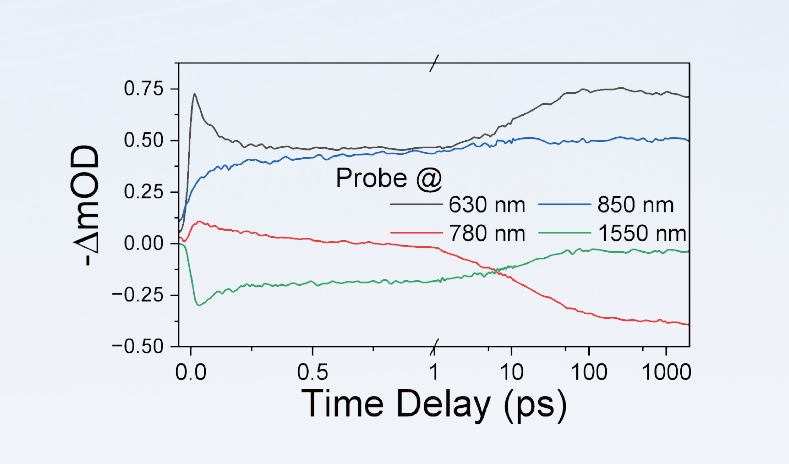

Corresponding kinetic trace of

organic photovoltaic thin-film

Designed for 1 kHz/2 kHz, 800 nm Ti: Sapphire systems

Model	Zephyrus V4D - 2048	Zephyrus V10D - 1024	Zephyrus N16D - 256
Wavelength Band (nm)	200 - 1100	200 - 1000	500 - 1700
Maximum Line Rate (kHz)	4	10	16
Single-line Array Pixels	2048	1024	256
Dual-array separation (mm)	19	19	19

Designed for 50 kHz, 1030 nm Yb-based systems

Model	Zephyrus V100D - 128	Zephyrus V50D - 384	Zephyrus N50D - 1024
Wavelength Band (nm)	400 - 1100	400 - 1100	950 - 1700
Maximum Line Rate (kHz)	100	50	50
Single-line Array Pixels	128	384	1024
Dual-array separation (mm)	19	19	19

MAIN SPECIFICATIONS

Model	Zephyrus V4S / D - 2048	Zephyrus V10S / D - 1024	Zephyrus N16S / D - 256
Detector Linear Array Version	Single-line array, Dual-line array
Wavelength Band (nm)	200 - 1100	200 - 1100	500 - 1700
Photosensitive Area Length (mm)	28.7	25.6	12.8
Single-line Array Pixels	2048	1024	256
Pixel Size (μm)	14 × 500	25 × 500	50 × 500
Peak Quantum Efﬁciency	75% @ 570 nm	70% @ 600 nm	83% @ 1300 nm
Typical Dynamic Range	6300	2800 (High Gain)	4000 (High Gain)
Typical Dynamic Range	6300			5000 (Low Gain)	6300 (Low Gain)
Full Well Capacity (Me⁻)	0.2	5.8 (High Gain)	17.5 (High Gain)
Full Well Capacity (Me⁻)	0.2			25.4 (Low Gain)	175 (Low Gain)
Conversion Efﬁciency (μV/e⁻)	10	0.56 (High Gain)	0.16 (High Gain)
Conversion Efﬁciency (μV/e⁻)	10			0.13 (Low Gain)	0.016 (Low Gain)
Maximum Line Rate (kHz)	4	10	16
Minimum Exposure Time (μs)	2	1	2
Heat Dissipation Method	Passive Cooling
Synchronous Signal Input	External trigger, Pump-Probe Synchronization
Size (mm)	100 × 100 × 58

Model	Zephyrus V100S / D - 128	Zephyrus V50S / D - 384	Zephyrus N50S / D - 1024
Detector Linear Array Version	Single-line array, Dual-line array
Wavelength Band (nm)	400 - 1100	400 - 1100	950 - 1700
Photosensitive Area Length (mm)	16.3	48.8	12.8
Single-line Array Pixels	128	384	1024
Pixel Size (μm)	127 × 127	127 × 127	12.5 × 250
Peak Quantum Efﬁciency	70% @ 600 nm	70% @ 600 nm	65% @ 1500 nm
Typical Dynamic Range	6300	6300	187 (High Gain)
				600 (Medium Gain)
				1500 (Low Gain)
Full Well Capacity (Me⁻)	11	11	0.15 (High Gain)
				0.38 (Medium Gain)
				1.22 (Low Gain)
Conversion Efﬁciency (μV/e⁻)	0.35	0.35	10.0 (High Gain)
				4.0 (Medium Gain)
				1.23 (Low Gain)
Maximum Line Rate (kHz)	100	50	50
Minimum Exposure Time (μs)	2	2	16
Heat Dissipation Method	Passive Cooling
Synchronous Signal Input	External trigger, Pump-Probe Synchronization
Size (mm)	100 × 100 × 51.7	100 × 100 × 51.7	100 × 100 × 58
