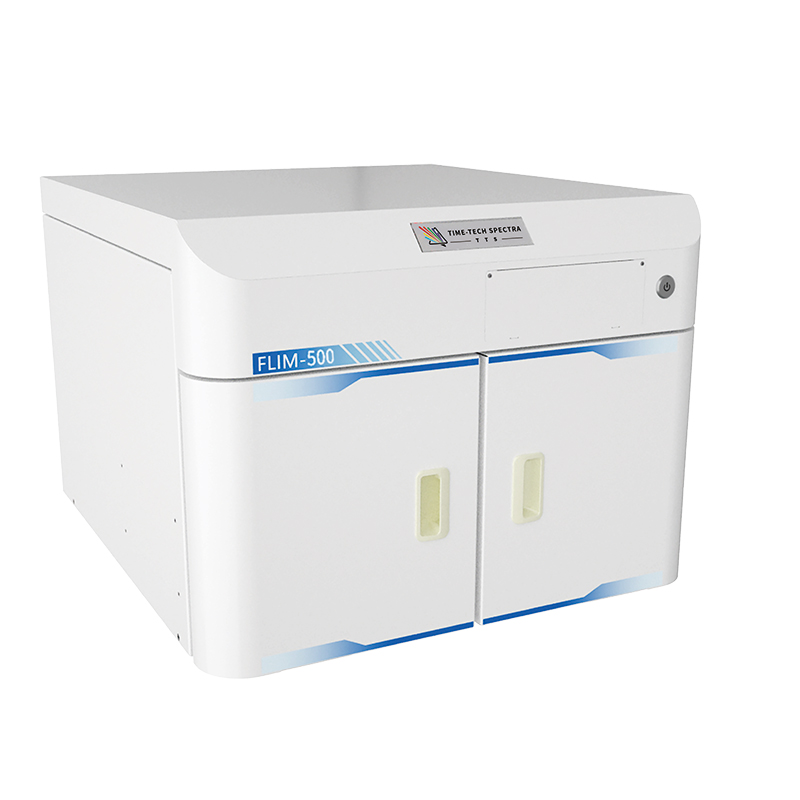

FLIM500
All-in-One Multifunctional Measurement
Fluorescence Intensity Imaging
Electroluminescence Imaging
Carrier Mobility Imaging
Fluorescence Spectroscopy
Fluorescence Lifetime Imaging
Photocurrent Imaging
SPECIFICATIONS
Laser Scanning Galvo Mirror Systems
| Laser input | Laser fiber optic input with an electrically controlled diaphragm system |
| Imaging range | 4096*4096 pix (Max) |
| Wavelength range | 400-900 nm |
Inverted microscope module
| Objectives | 100x, 50x, 10x air lenses（100x oil lens optional） |
| Spatial resolution | ≤260 nm（100x oil lens） |
Steady-state spectroscopy module
| Monochromator | Focal length: 300 mm |
| Detector | PMT or CCD |
| Spectral range | 185-900 nm (PMT) |
| 200-1100 nm (CCD) |
TCSPC module
| Time accuracy | 7 ps |
| Spectral range | 200-870 nm (PMT) |
| 400-1100 nm (APD) | |
| Number of Bin channels | 4096 |
| Time window | 5 μs (expandable for long-lifetime testing) |
| Time resolution | ≤70 ps |
Available Light Source
| Picosecond laser at | 375/405/440/480/510/635/665/690/850/940/1060 nm |
| Picosecond super-continuum white light laser | 410-2400 nm |
APPLICATION
Fluorescence intensity imaging, fluorescence lifetime imaging

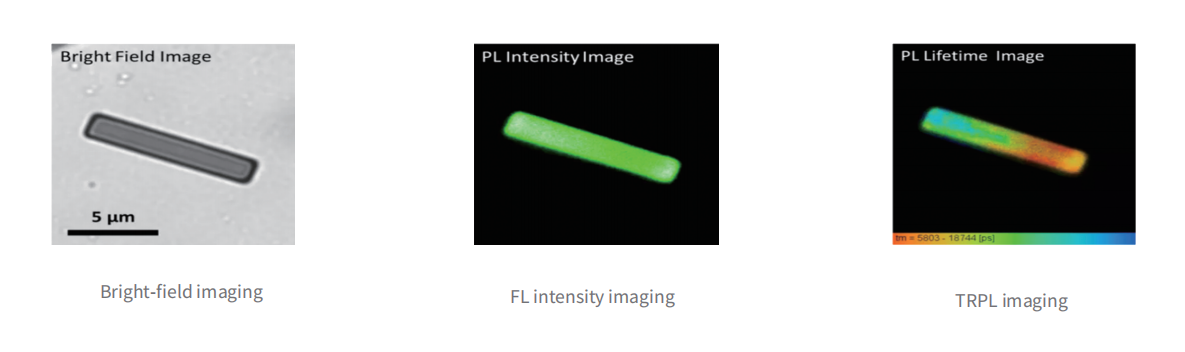

Confocal scanning imaging mode
| Sample | MAPbI₃ nanowires |
| Objective | 100X |
| Excitation wavelength | 400 nm |

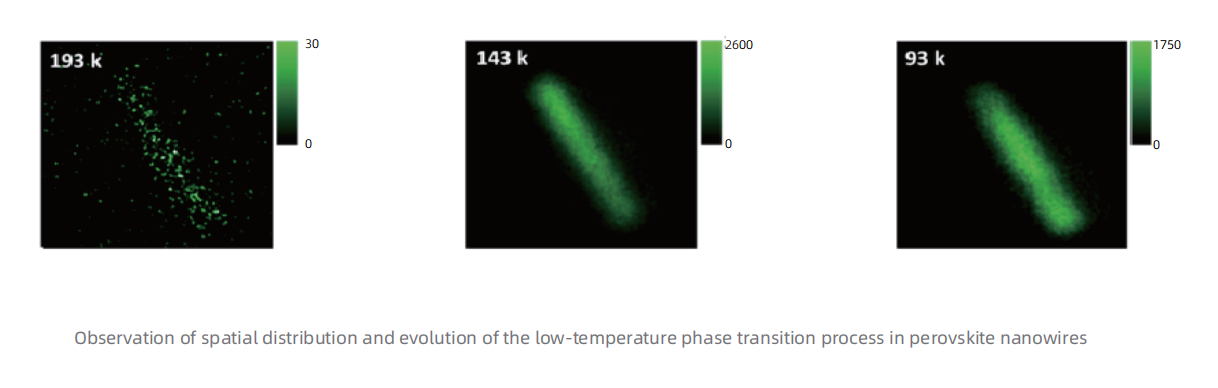

Fluorescence Imaging in a Low-Temperature Chamber
Confocal Scanning Imaging Mode
| Sample | MAPbI₃ nanowires |
| Objective | 100X |
| Excitation wavelength | 400 nm |

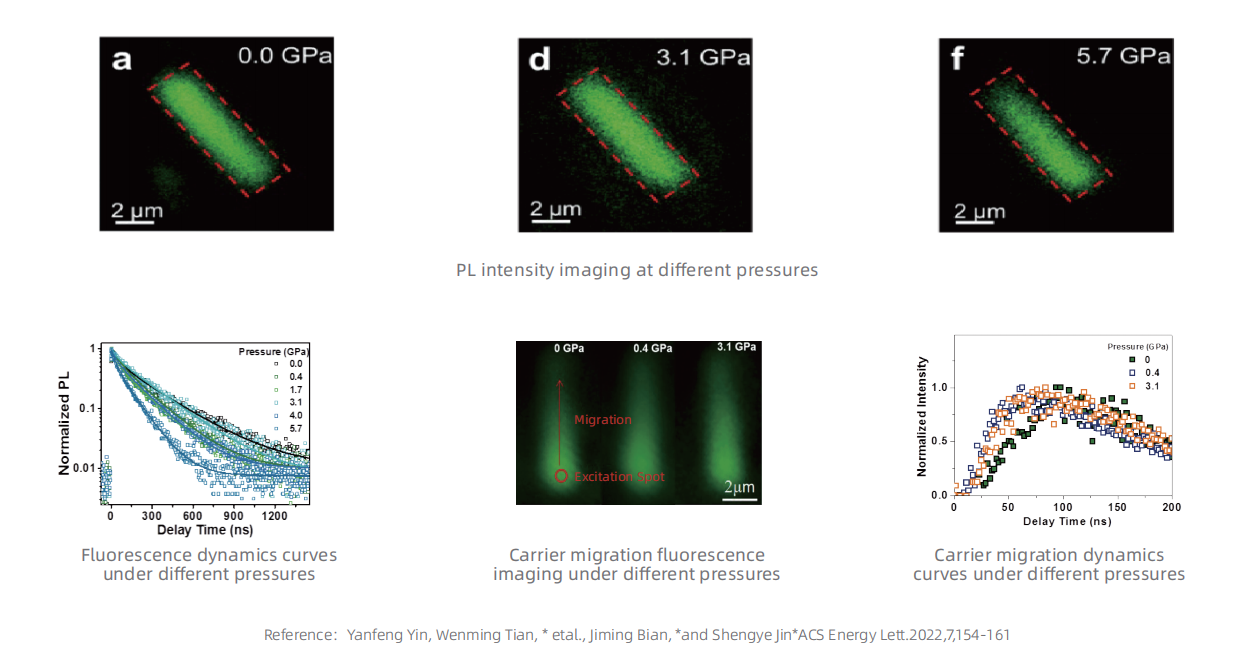

Fluorescence Imaging in a High-Pressure Chamber
Confocal scanning imaging mode, Carrier migration imaging mode
| Sample | MAPbI₃ nanowires |
| Objective | 100X |
| Excitation wavelength | 400 nm |

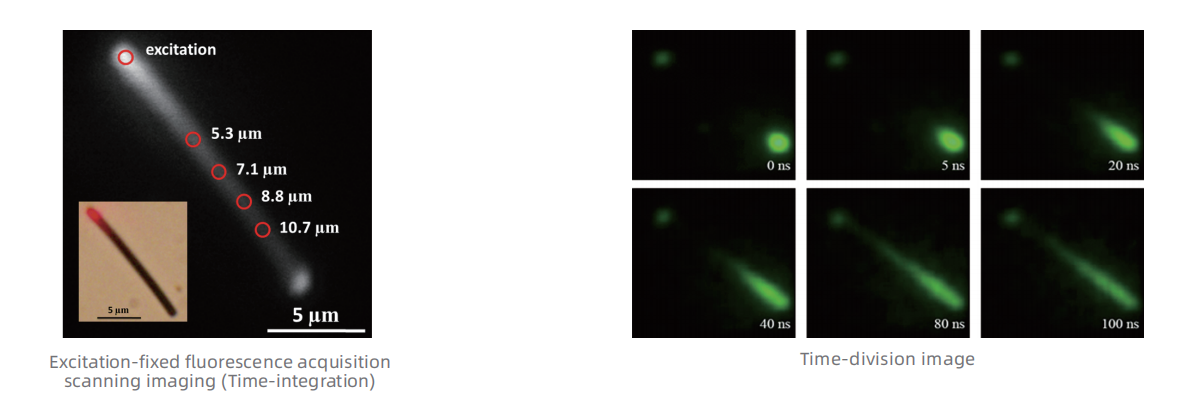

Carrier Migration Imaging
Confocal scanning imaging mode, Carrier migration imaging mode
| Sample | MAPbI₃ nanowires |
| Objective | 100X |
| Excitation wavelength | 400 nm |

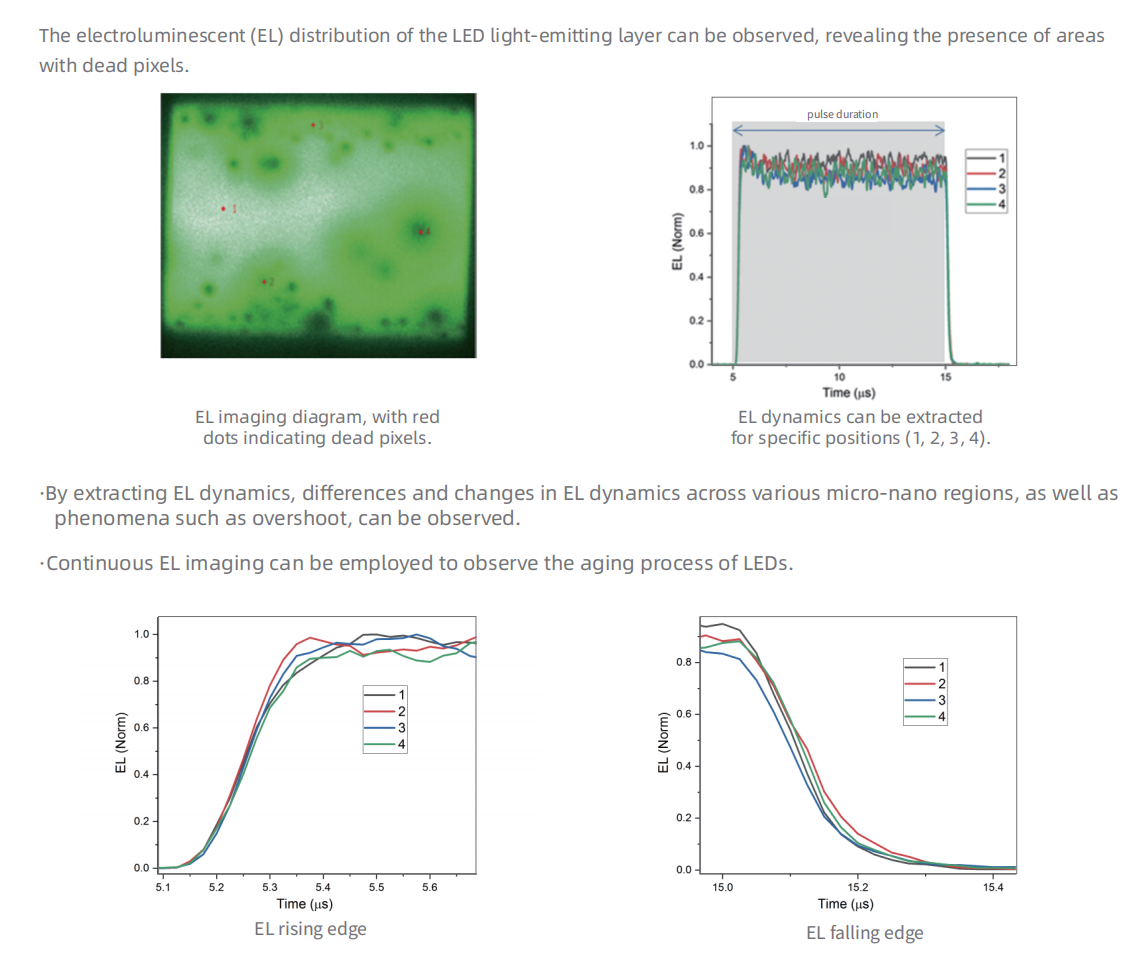

Electroluminescence (EL) Imaging
Sample Data
| Sample | QD-LED | Voltage | 10 V | Time precision | 25 ns |
| Objective | 4X air lens | Pulse width | 10 μs | Acquisition time | 28 min |
| Excitation wavelength | 405 nm | Frequency | 10 kHz | - | - |

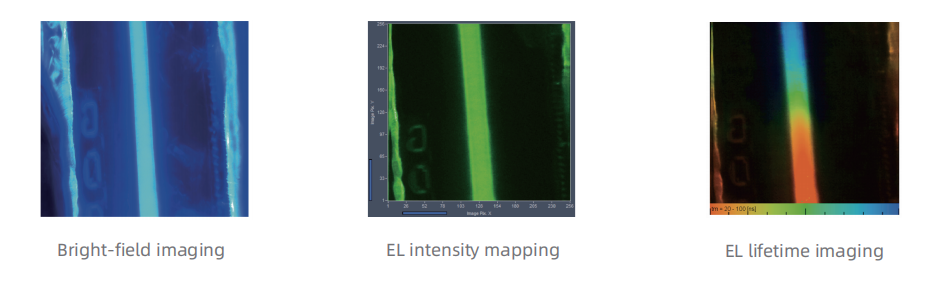

Sample Data
| Sample | Laser chip |
| Excitation wavelength | 515 nm |

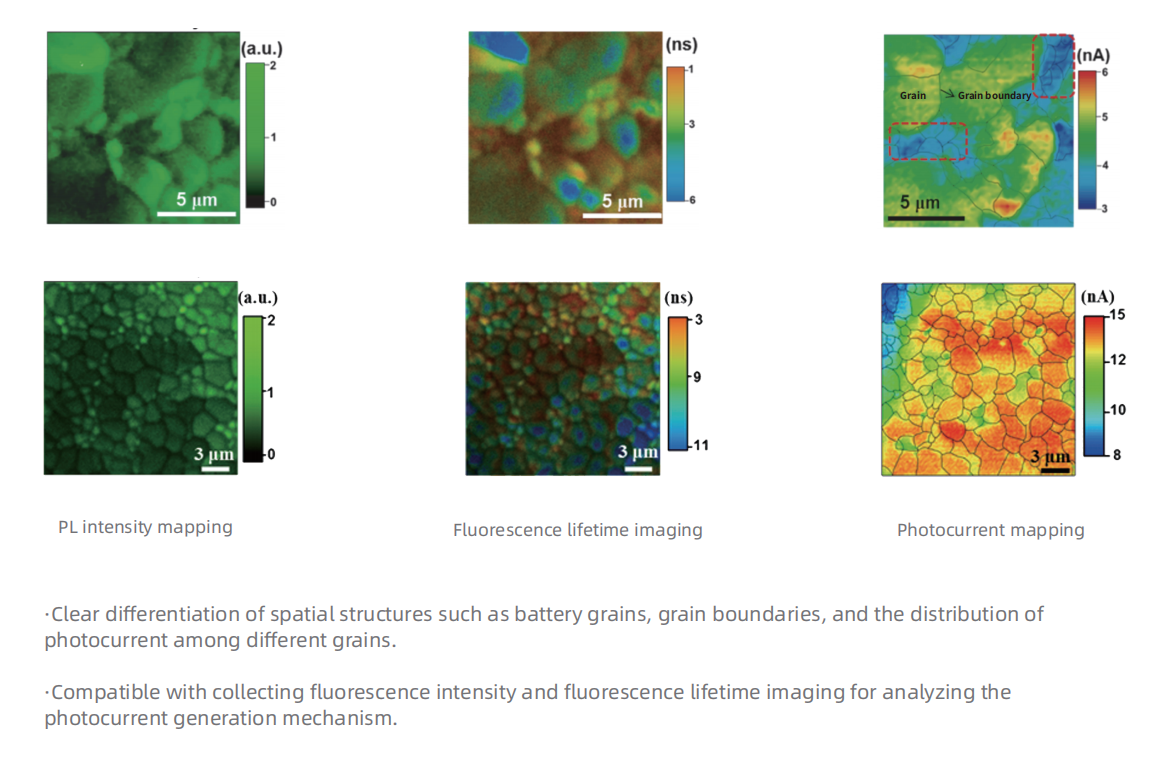

Photocurrent Imaging
Sample imaging of a 2D solar cell structure (ITO/SnO2/QW/Spiro-Au)
| Sample | Perovskite solar cells device |
| Objective | 100X |
| Excitation wavelength | 405 nm |
Clear differentiation of spatial structures such as battery grains, grain boundaries, and the distribution of photocurrent among different grains.
Compatible with collecting fluorescence intensity and fluorescence lifetime imaging for analyzing the photocurrent generation mechanism.
