High Energy and High Frequency DPSS YAG-OPO Laser
High Energy and High Frequency DPSS YAG-OPO Laser

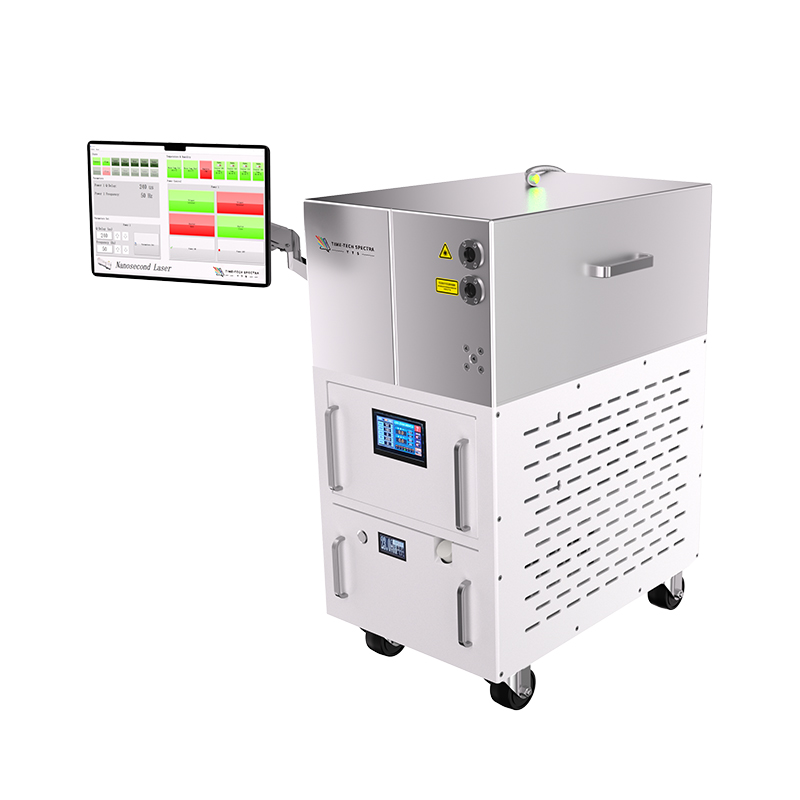

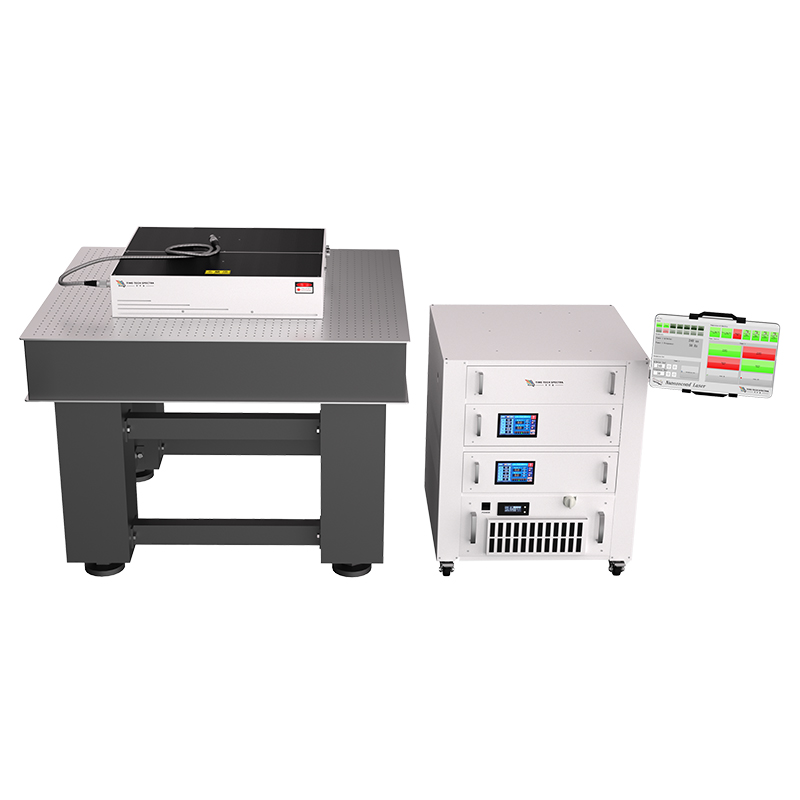

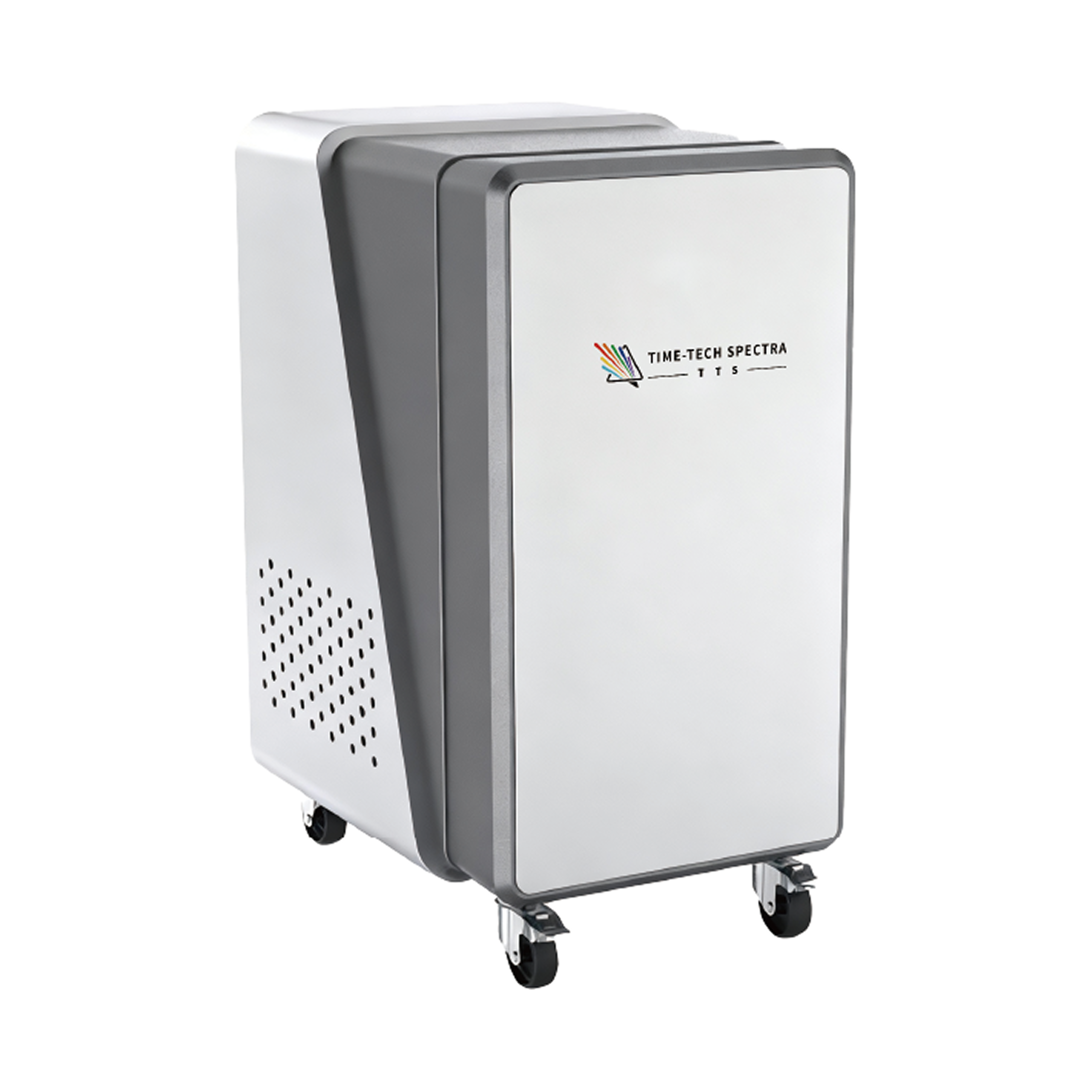

The High Energy and High Frequency YAG-OPO Integrated Machine is an independently developed product by Time-Tech Spectra. It is a diode-pumped Nd:YAG nanosecond pulse laser with exceptional features, including high output energy, high frequency, excellent beam quality, advanced intelligence, compact structure, and easy maintenance. Its high energy output, high repetition rate, tunable wavelength, excellent beam quality, high reliability, ease of integration, and eco-friendly, energy-saving features make it an ideal choice across various fields.
Inquire


Products Feature


  • Compact overall: High stability

  • Laser repetition frequency: 50Hz

  • High energy

  • High conversion rate

  • Quick wavelength switching

  • Flat-top light output

  • Stable energy output


Specifications


ModelFlatTop-OPO-532FlatTop-OPO-355
Wavelength
1064 nm600mj300mj
532 nm300m150mj
355nm
100mj
OPO Tuning Range
SW680-900 nm420-700 nm
IW1200-2400 nm720-2300 nm
OPO Peak Energy
Signal>100mj@760 nm>15mj@450 nm
Idler>50mj@1250nm>7mj@850nm
Pulse repetition rate50Hz
Pulse duration5-10ns
Dimensions
Main Body364*550*744.4 mm
