Specifications

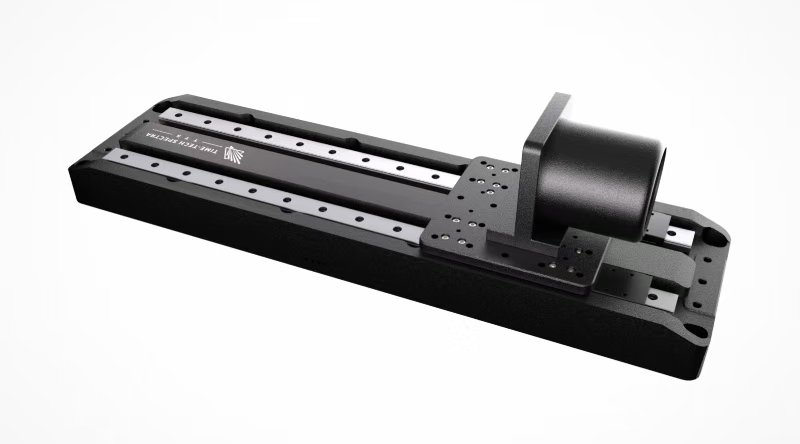

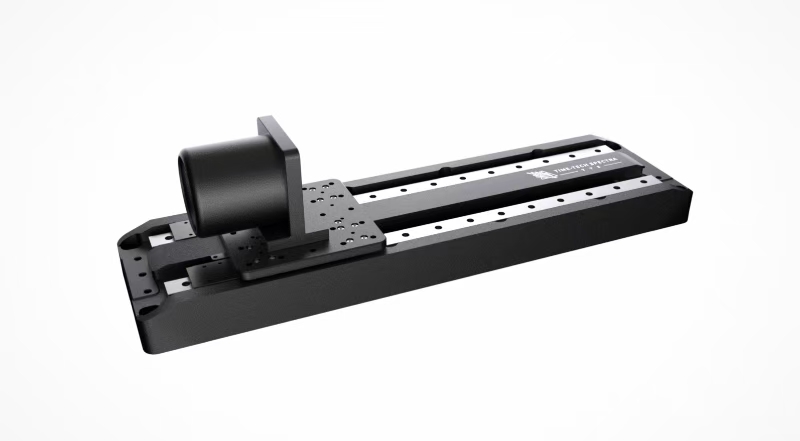

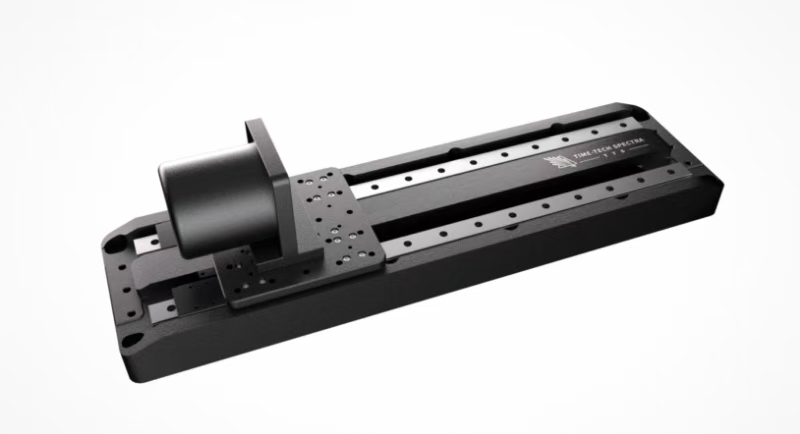

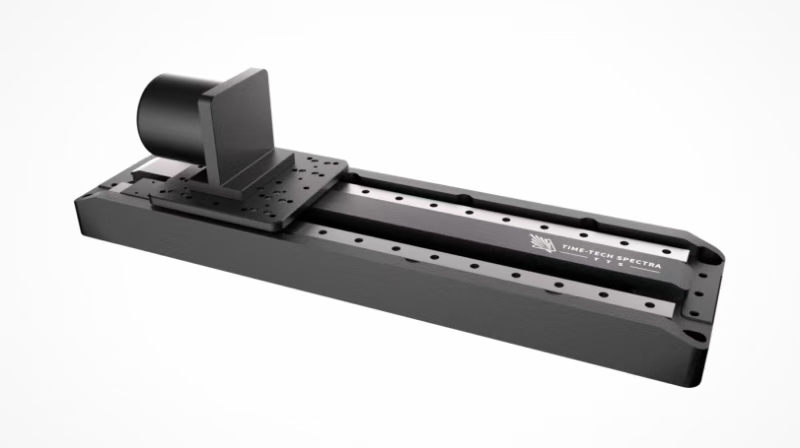

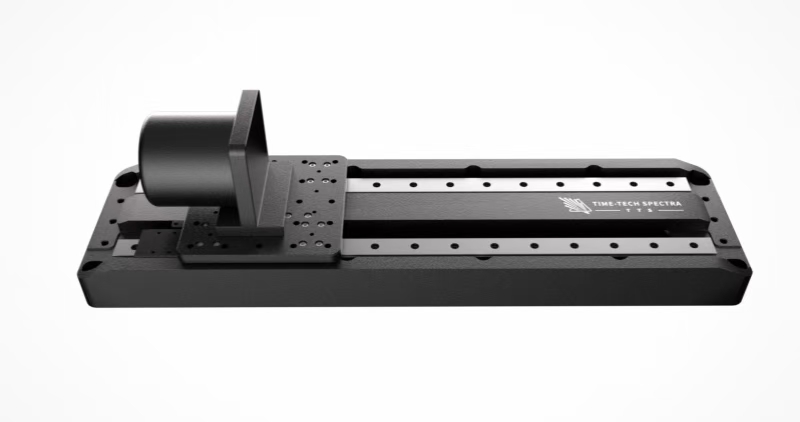

High-stability Linear Translation Stage
| Travel Range | 300 mm |
| Maximum Speed | 400 mm/s |
| Maximum Acceleration | 10000 mm/s² |
| Bidirectional Repeat Positioning Accuracy | ±0.25 μm |
| Maximum Load Capacity | 3 kg |
| Minimum Step Size | 0.1 μm |
| Straightness / Flatness | ±4 μm |
| X-Axis Deviation | ±100 μrad |
| Y-Axis Deviation | ±150 μrad |
| Weight | 6.3 kg |
| Drive Motor Type | DC Linear Brushless Motor |
| Average Thrust | 15 N |
| Peak Thrust | 30 N |

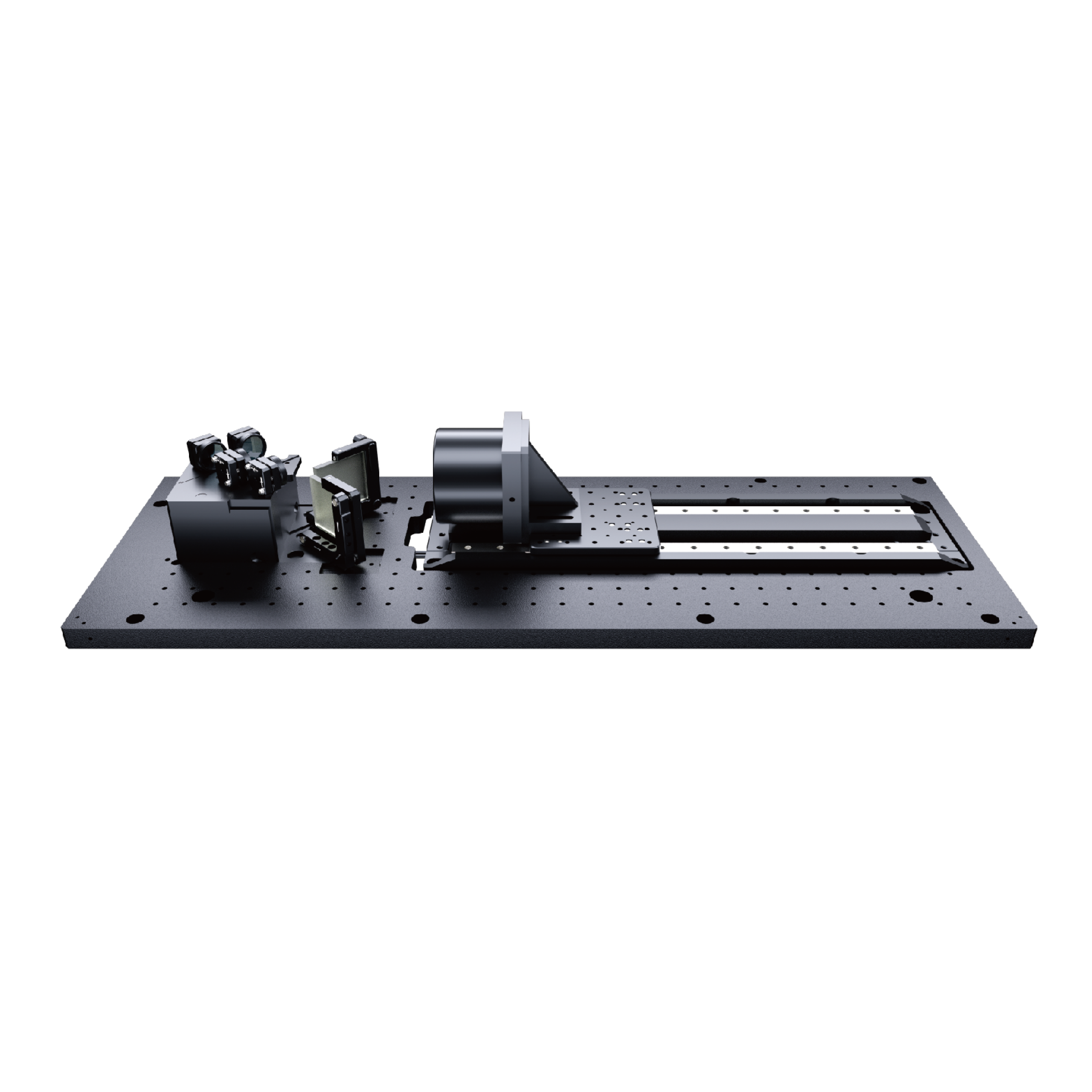

Optical Delay Line
| Wavelength Range | 450-10000nm（Compatible with Optional Wavelength Ranges） |
| Kit Configuration | Retroreflector Mount |
| 2-Inch Rectangular Optical Mirror Mount, Left/Right-Handed Version Preloaded with High-Reflectivity Laser Mirrors | |
| 4× Compact Optical Adjustment Mounts， Preloaded with High-Reflectivity Laser Mirrors | |
| Delay Line Mirror Mount Baset |
