| Laser-OPA all-in-one customized solution 315 nm -2600 nm tunable wavelength Visual automatic control wavelength tuning system Smaller footprint Faster start-up | |||||||||

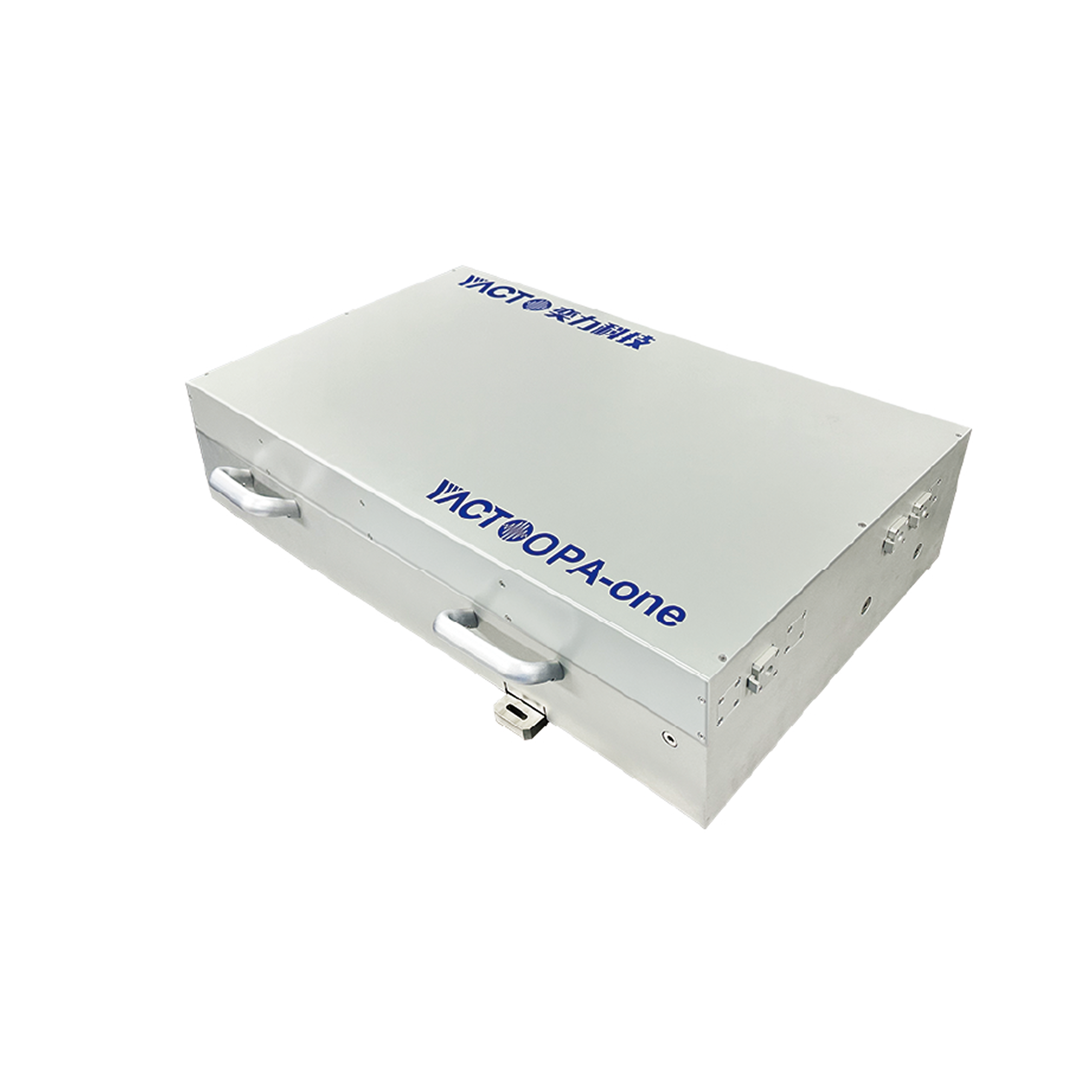

YactoOPA-one is a specially designed femtoecond laser for pump-probe system, which integrates a femtosecond laser and an optical parametric amplifier in one box. The all-in-one system can simultaneously output time-synchronized two/three laser beamsior matenal excitation pump laser and white light generation probe laser respectively. The pump wavelength tuning range based onOPA can reach 300nm-2600nm,and adapting different material excitation wavelengths, while a reserved 1030nm output port withquality-proved pulses is used to excite nonlinear crystals such as YAG/Sapphire to produce stable broadband white light. Theall-in-one design structure avoids frequent daily maintenance and greatly improves the speed of warming up down to 15 minutes. Inaddition, YactoOPA-one has unique advantages in the fields of ultrafast electron microscopy, super-resolution biological imagingand fine processing of composite materials.
| Model | YactoOPA-one |
| Pump wavelength | 1030 ± 10 nm |
| Pump energy | 100 pJ (standard) . 20 - 200 p (customize) |
| Pump power | 10 W/20 W (standard) , 50 W (customize) |
| Wavelength tuning | 1040 - 2600 nm (Idler) 630 - 1020 nm (Signal) |
| Peak conversion efficiency | > 4 % (Idler) > 8 % (Signal) |
| Two-Octave Expansion (Internally Integrated) | 520-630 nm (SHI) 315-515 nm (SHS) |
| OPA output pulse width | Typical pulse duration - 200 fs |
| Spectral linewidth | 75 - 200 cm-1 @ 700 - 960 nm |
| Long-term power stability | RMS < 2 % (< 1 % typical) for 8 hours |
| Drive the laser synchronous output | 1030 nm (can be used for TA system probe photosynchronous excitation) |
| Size | 850 × 475 × 191 mm3 |
| Cooling method | Water |
