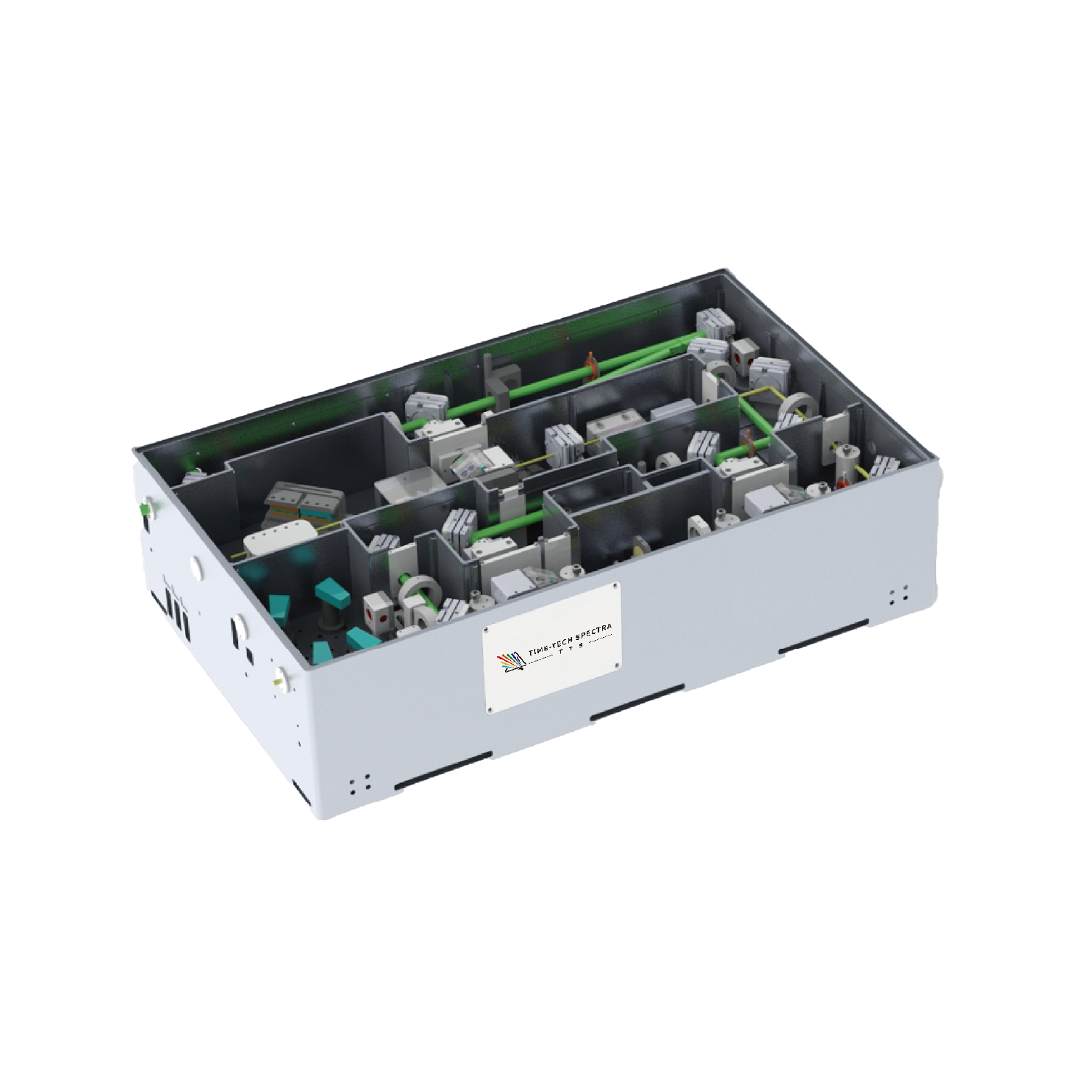

Tunable Nanosecond Pulsed Dye Laser

Availability:
This tunable, narrow linewidth dye laser features a compact integrated design with a robust metal housing,which guarantees stable performance. lt can be customized to fulfill the requirements of the most advanced and innovative applications.
Inquire

Product Description
Specifications
Measured Data
Dimensions

This tunable, narrow linewidth dye laser features a compact integrated design with a robust metal housing,which guarantees stable performance. lt can be customized to fulfill the requirements of the most advanced and innovative applications.

Specifications


Wavelength Range

200~900 nm

Linewidth

0.06~0.01 cm-1

Efficiency

10%~30%

Pump Energy

< 400 mJ@532 nm

Divergence

< 1.0 mrad

Polarization State

> 98% (horizontal polarization)

Wavelength Stability

< 1.5 pm/°C Dimensions
Dimensions 650 mm x 400 mm x 170 mm

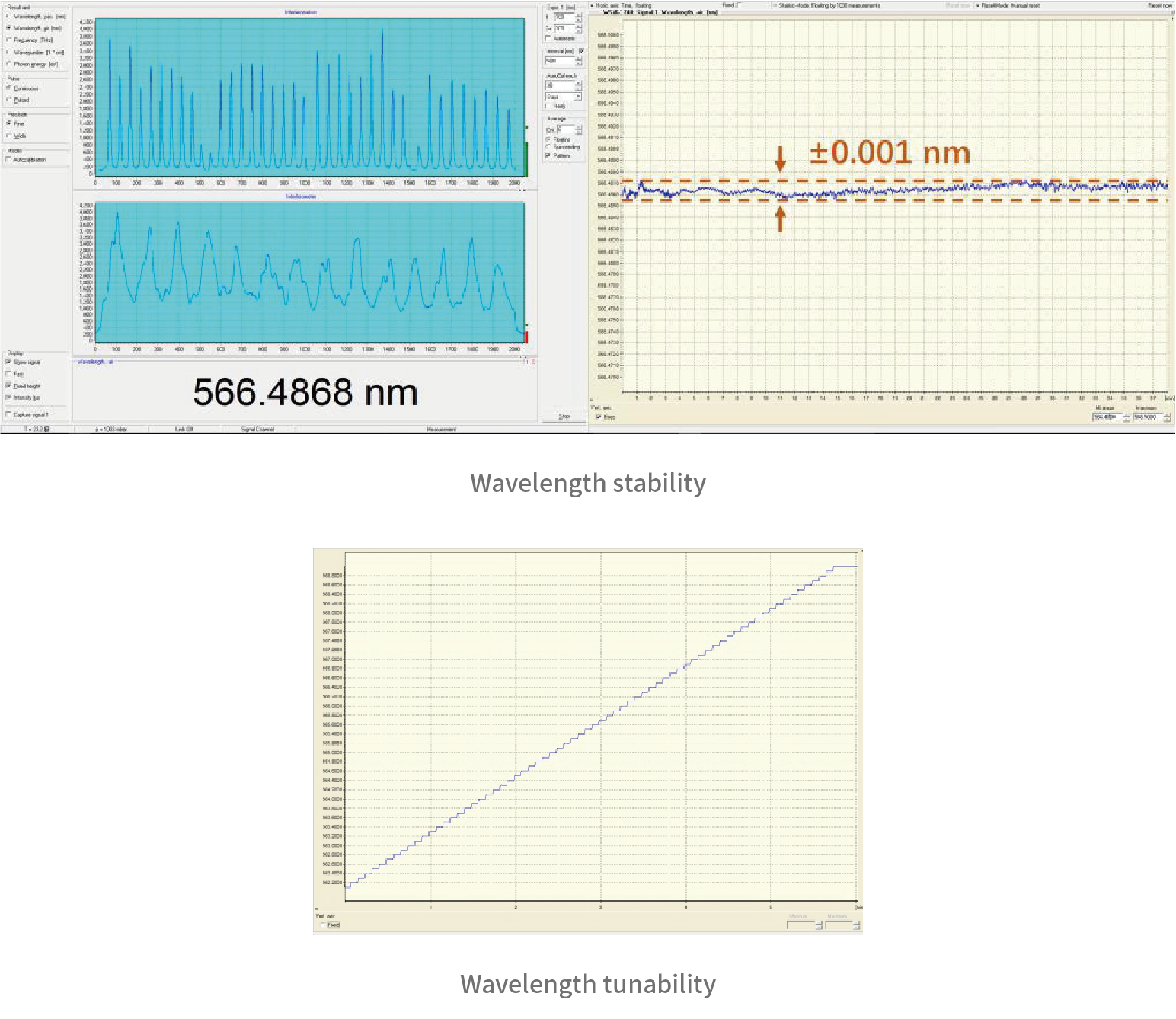

Measured Data

Tunable-图1资源 144x.png

Dimensions

Measured Data资源 154x.png
