| Availability: | |||||||||
|---|---|---|---|---|---|---|---|---|---|

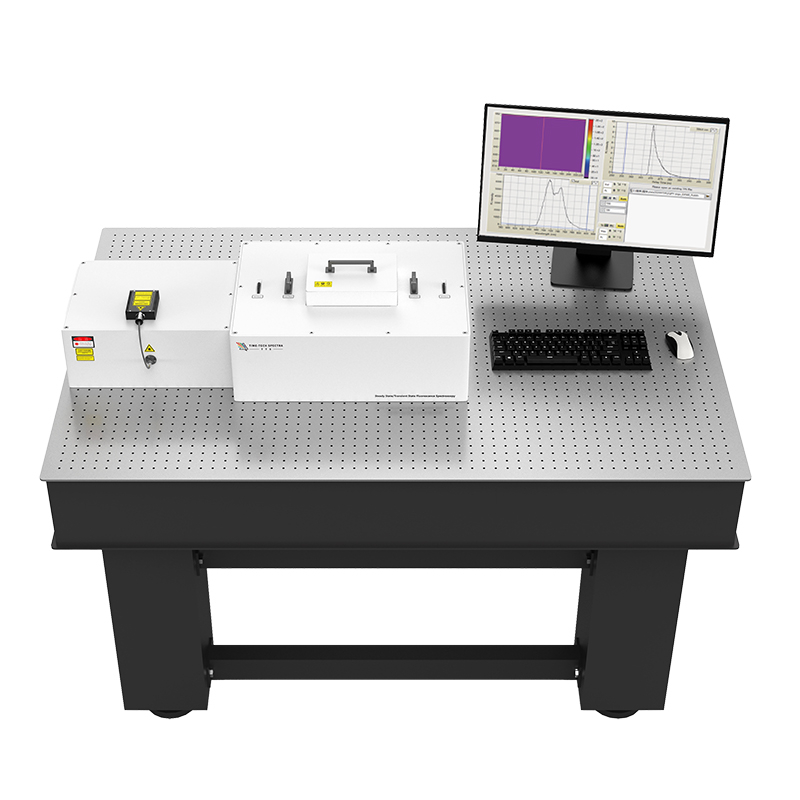

| TPL300 integrates steady-state/transient detection with compact design. Performs 3D spectral-lifetime mapping, data fitting, and multi-dimensional analysis through specialized software. | |||||||||
Products Feature
Dual-mode Detection: Steady-state spectra + TPSPC lifetime (7ps resolution).
Broad Detection: 250-1700nm (steady-state)/350-900nm (transient).
Flexible Excitation: Optional ps diode lasers (375-1060nm) & supercontinuum white laser (410-2400nm).
Specifications
Steady-state fluorescence module parameters
| Monochromator | 200/300/500mm |
| Detector | PMT or CCD |
| Spectral range | 250-900nm. 900-1700nm |
Transient TPSPC module
| Time window | ≤5 μs (expandable for phosphorescence testing) |
| Time Resolution | 300 ps |
| Time chanel width | 7 ps |
| Spectral range | 350-900 nm |
Selectable lasers
| Picosecond laser at 375/405/440/480/510/635/665/690/850/940/1060 nm | |
| Picosecond super-continuum white light laser (410-2400 nm) |
Expandable modules
| Microscope module spatial resolution | ≤300 nm |
| PL Imaging module | PL intensity/lifetime/spectral imaging, carrier migration imaging, photocurrent imaging |
| EL Imaging module | EL intensity/lifetime/spectral imaging, |

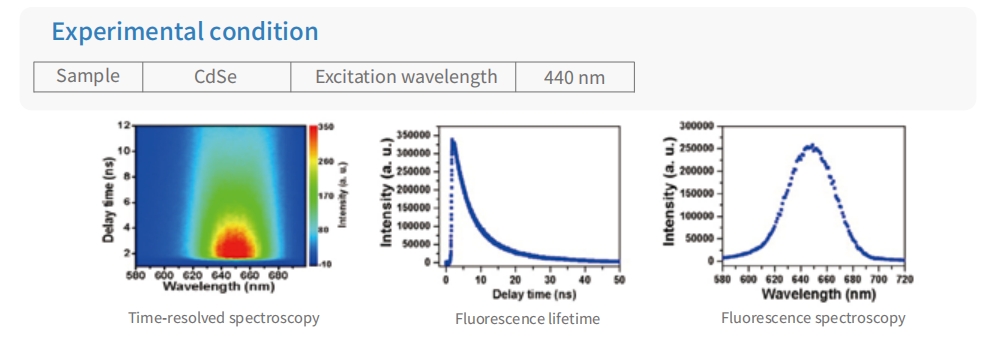

Application
