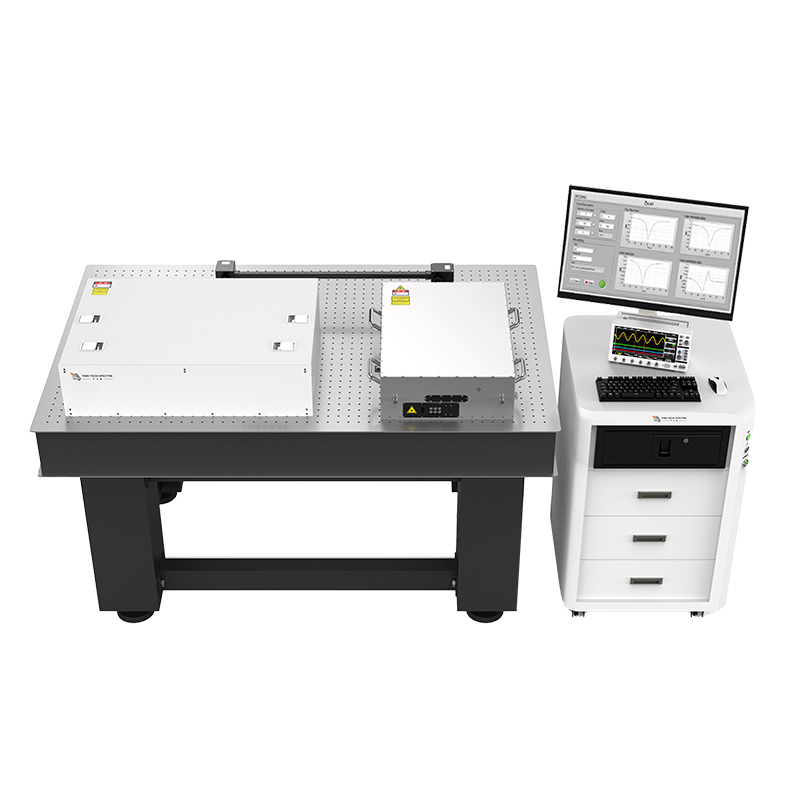

Z-scan System

Availability:
ZTS100 measures nonlinear absorption/refraction through z-axis scanning. Features closed/open aperture detection with anti-jitter dual-channel design for precise nonlinear coefficient determination.
Inquire

Products Feature
Specifications
Application
Download


Products Feature


  • Precision Stage: 0.1μm resolution, <2μm repeatability.

  • Broad Detection: 350-1700nm power meter (50nW-40mW).

  • Anti-jitter: Dual-channel reference compensation.



Specifications


Precision optical displacement stage

Speed 30 mm/s
Minimum resolution 0.1 μm
Repositioning accuracy < 2 μm


Power detector

Test wavelength 350-1700 nm
Power testing range 50 nW-40 mW
Debounce Simultaneous acquisition of dual-channel reference signals

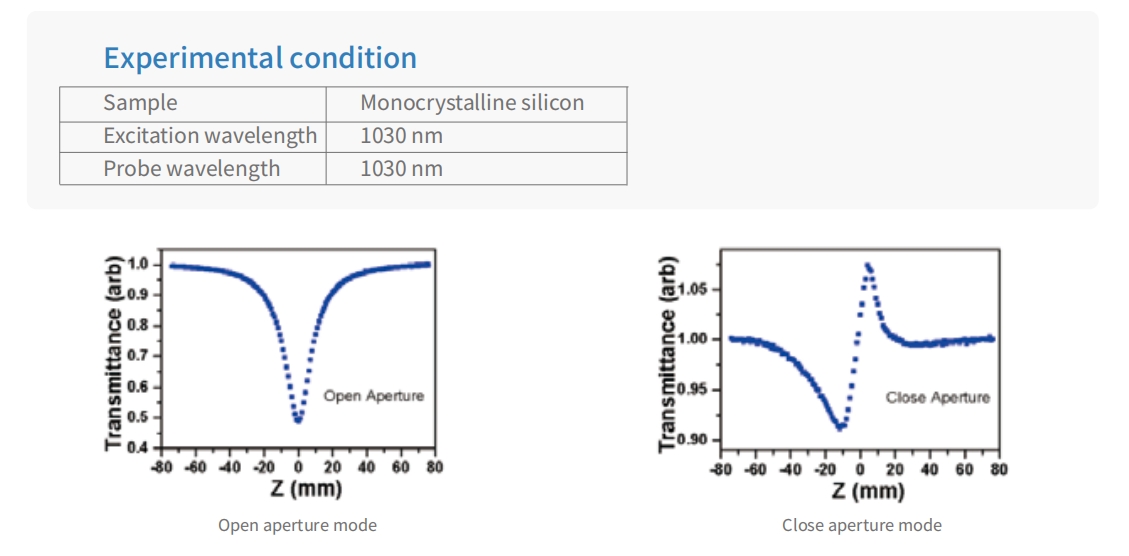

Application


微信截图_20250324235020
