Laser Scanning Confocal Fluorescence Lifetime Imaging Microscopy

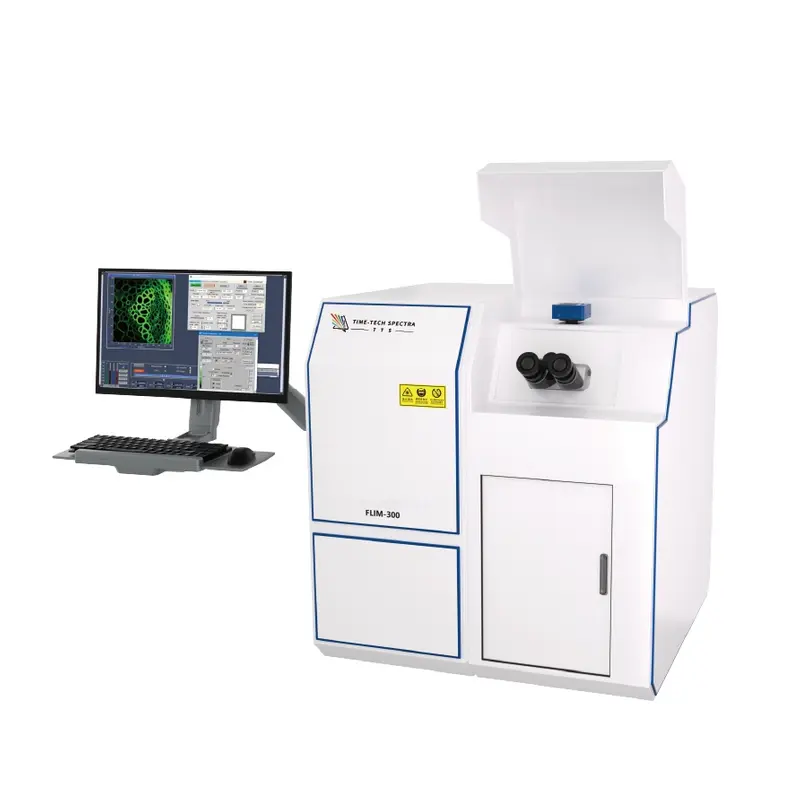

The FLIM300 is a unique high-speed fluorescence imaging system. It utilizes a AliRE v ing galvanometer mirror to efficiently capture the fluorescence intensity (lifetime) of samples, enabling the acquisition of a high-quality fluorescence intensity (lifetime) image within just a few seconds.
SPECIFICATIONS
Laser Scanning Galvo Mirror Systems
| Laser input | Laser fiber optic input with an electrically controlled diaphragm system |
| Imaging range | 4096*4096 pix (Max) |
| Wavelength range | 350-1000 nm |
Inverted microscope module
| Objectives | 100x, 50x, 10x air lenses (oil immersion lenses are optional) |
| Spatial resolution | ≤260 nm |
Steady-state spectroscopy module
| Monochromator | Focal length: 300 mm |
| Detector | PMT or CCD |
| Spectral range | 350-870 nm |
TCSPC module
| Time accuracy | 7 ps |
| Spectral range | 350-870 nm |
| Number of Bin channels | 4096 |
| Time window | 5 μs (expandable for long-lifetime testing) |
| Time resolution | ≤70 ps |
Optional module
| Picosecond laser | 375/405/440/480/510/635/665/690/850/940/1060 nm |
| Picosecond super-continuum white light laser | 410-2400 nm |
ULTRAFAST TRANSIENT ABSORPTION APPLICATION EXAMPLES
Fluorescence Intensity Mapping, Fluorescence Lifetime Mappimg
Confocal scanning imaging mode
| Sample | MAPbI₃ nanowires |
| Objective | 100X |
| Excitation wavelength | 400 nm |
Fluorescence Mapping in a Low-Temperature Chamber
Confocal scanning imaging mode
| Sample | MAPbI₃ nanowires |
| Objective | 100X |
| Excitation wavelength | 400 nm |
Fluorescence Mapping in a High-Pressure Chamber
Confocal scanning mapping mode, Carrier migration imaging mode
| Sample | MAPbI₃ nanowires |
| Objective | 100X |
| Excitation wavelength | 400 nm |
Carrier Migration Mapping
Confocal scanning mapping mode, Carrier migration imaging mode
| Sample | MAPbI₃ nanowires |
| Objective | 100X |
| Excitation wavelength | 400 nm |
Electroluminescence (EL) Mapping
Testing condition
| Sample | QDs LED | Voltage | 10 V | Time precision | 25 ns |
| Objective | 4X air lens | Pulse width | 10 us | Acquisition time | 28 min |
| Excitation wavelength | 405 nm | Frequency | 10 KHz |
Applications
Sample Experiment
| Sample | Laser chip | Excitation wavelength | 515 nm |
Photocurrent Mapping
Sample Experiment
| Sample | Perovskite solar cells device |
| Objective | 100X |
| Excitation wavelength | 405 nm |
