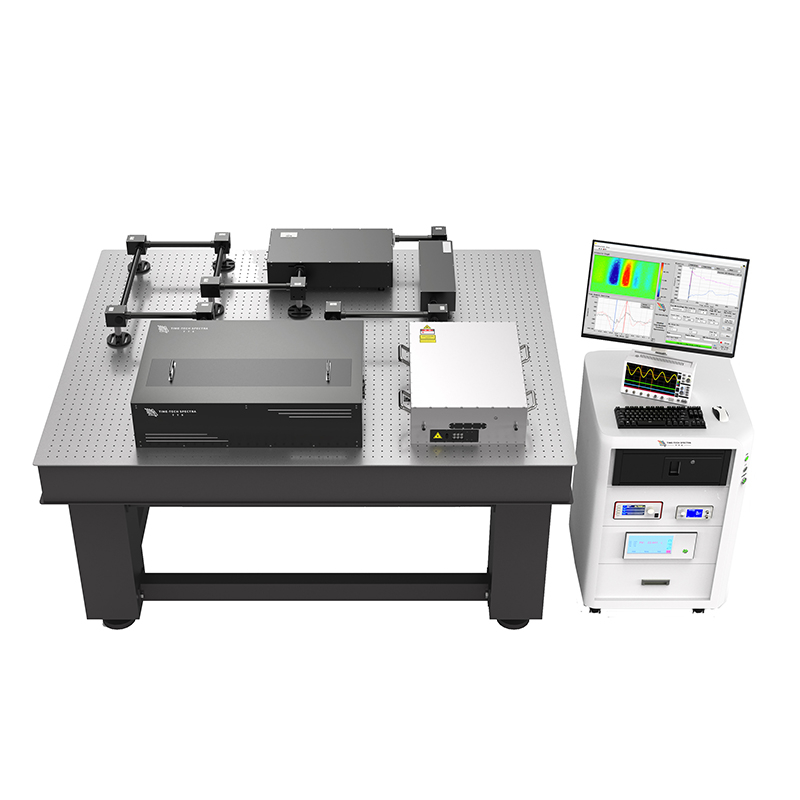

THZ100 combines optical pump-THz probe (OPTP) technology to resolve ultrafast phenomena like semiconductor carrier dynamics and photocatalytic processes. Compatible with solutions/thin films/powders, extendable with cryogenic/EM field controls. Features 3THz detection range, >10-4 SNR, and fully automated nitrogen-purged sample chamber for enhanced reproducibility. | |||||||||
Products Feature
Broad THz Range: 0.25-3THz covers material response characteristics.
High SNR: ≤10-3 SNR ensures reliable weak signal detection.
Automation: Full optical automation enhances reproducibility.
Sample Versatility: Nitrogen-purged chamber supports solutions/thin films/powders with cryogenic capability.
Specifications
Main Technical Indicators
Spectral range | 0.25-3 THz |
Time window | 8 ns |
Mode | Transmission |
Detector | Dual-aperture balanced detector |
Sensitivity | ≤10-3 |
Automation system | Full-automatic optical path switching, automated optical path calibration |
Nitrogen-filled sample chamber | Support solution, film, and powder samples |
Customer requirements | Support low temperatures and other customer requiements |
Software functions | Data acquisition/analysis |

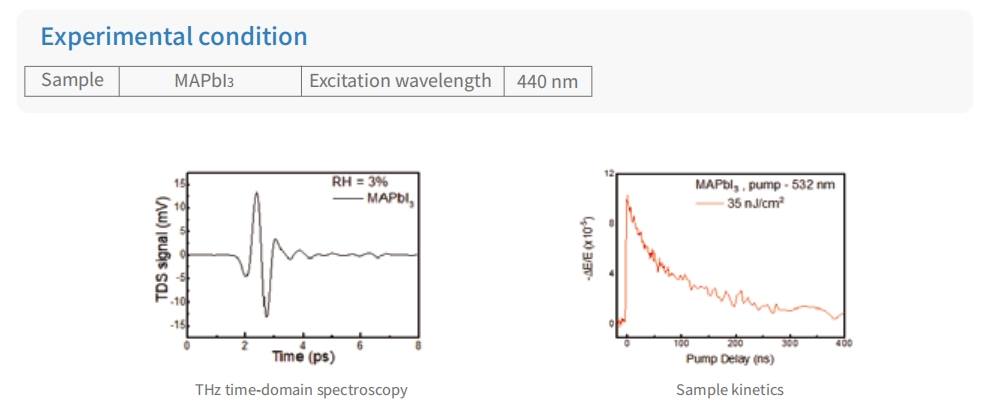

Application
