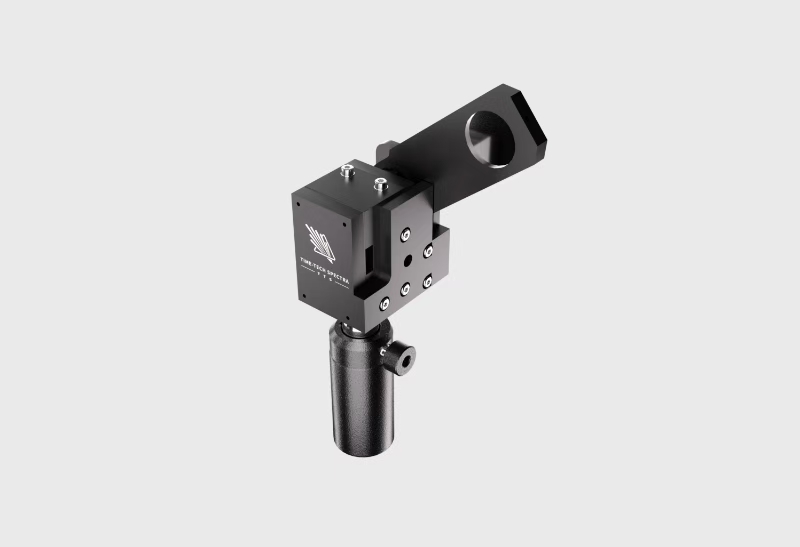

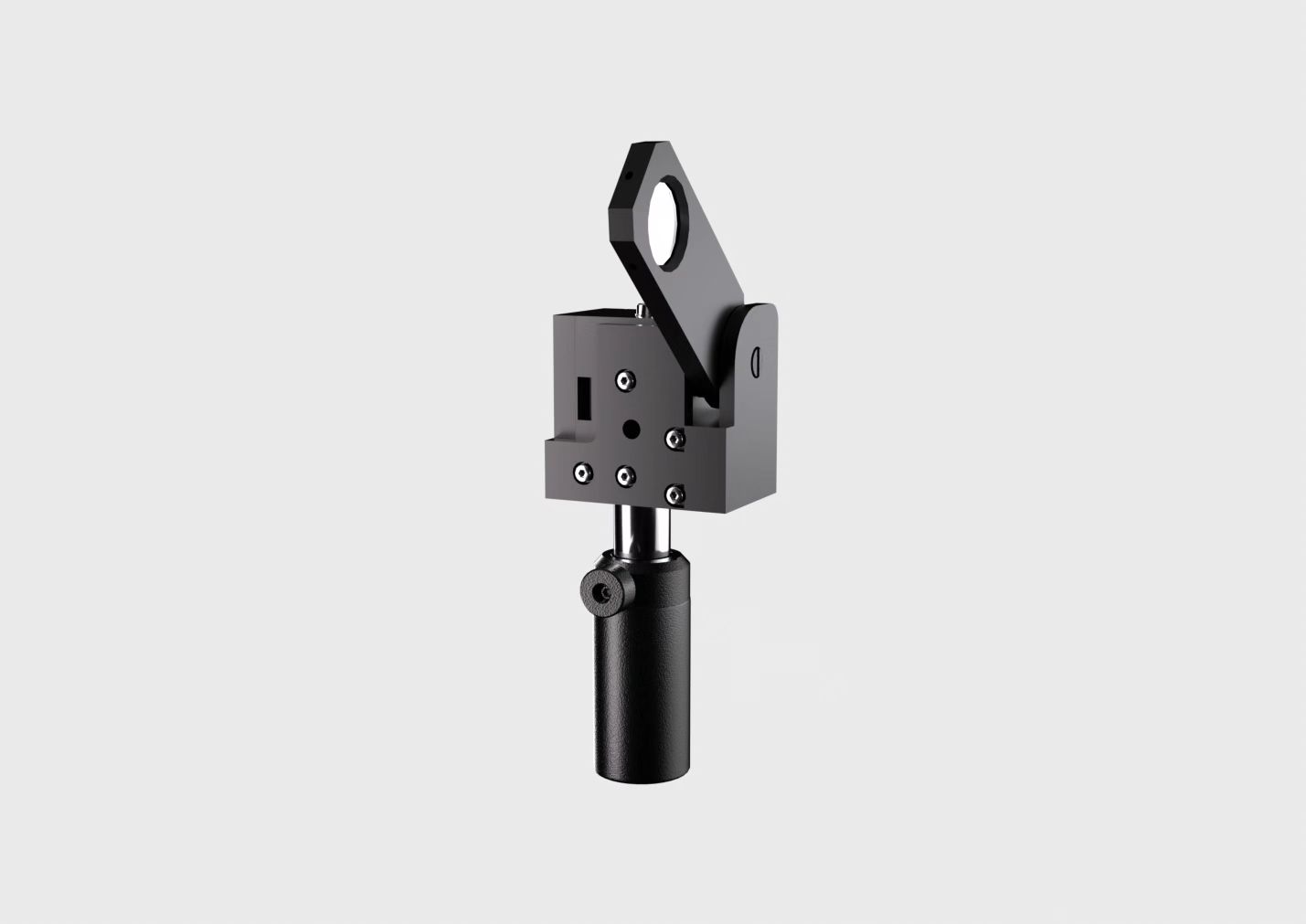

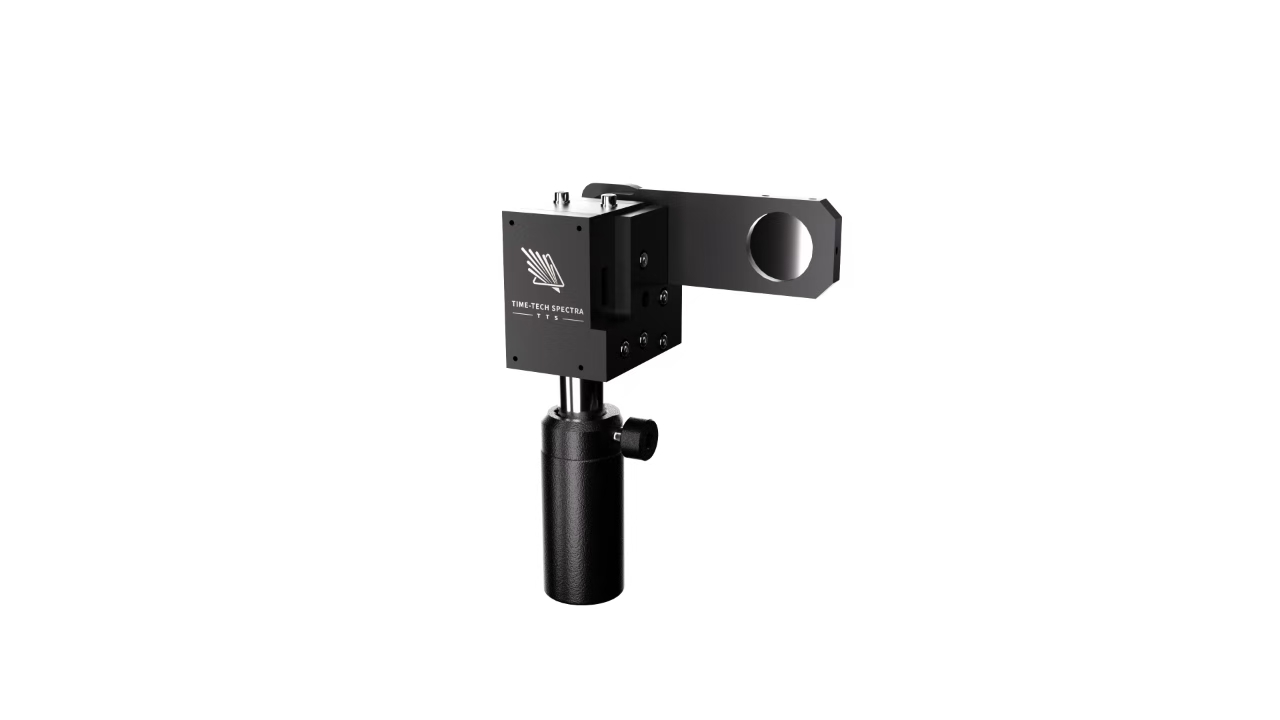

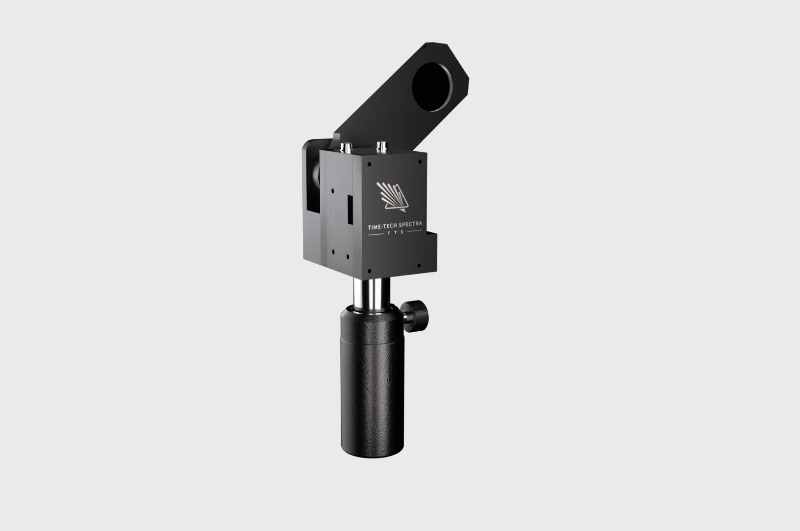

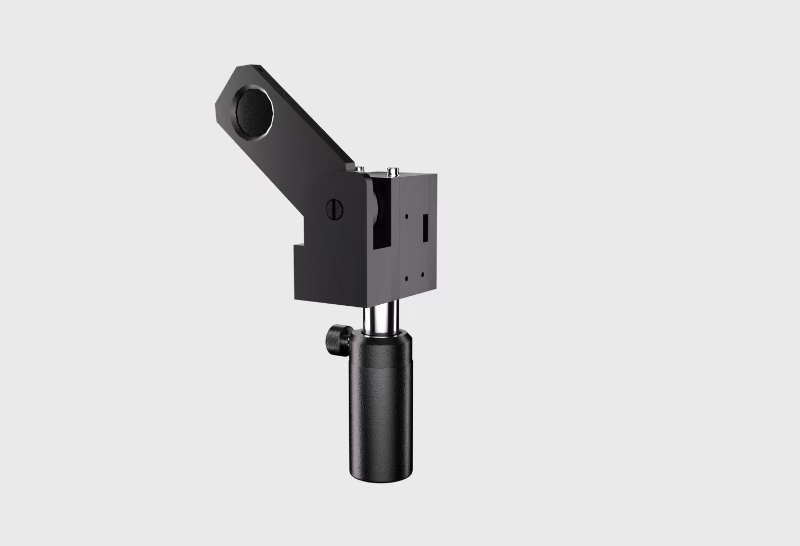

Flip Mirror

The motorized flip mirror communicates via RS485 and is controlled using LABVIEW programming software, which facilitates subsequent software development as needed. Only one communication port and power supply are required, enabling multiple motorized flip mirrors and filter holders in the same series to be connected in a chain. This minimizes the hassle of managing multiple ports for similar devices, making system integration more convenient. Conversion speed can be adjusted to achieve smooth transitions between 0° and 90°. Dual protection through mechanical and software limits reduces position deviation caused by repeated flipping.

Position Resolution: 0.088°

Position Range: 0° and 90°

Operating Voltage: 12 VDC

Optical Diameter of Installed Lens: 1 inch

Maximum Torque: 1.3 N·m
