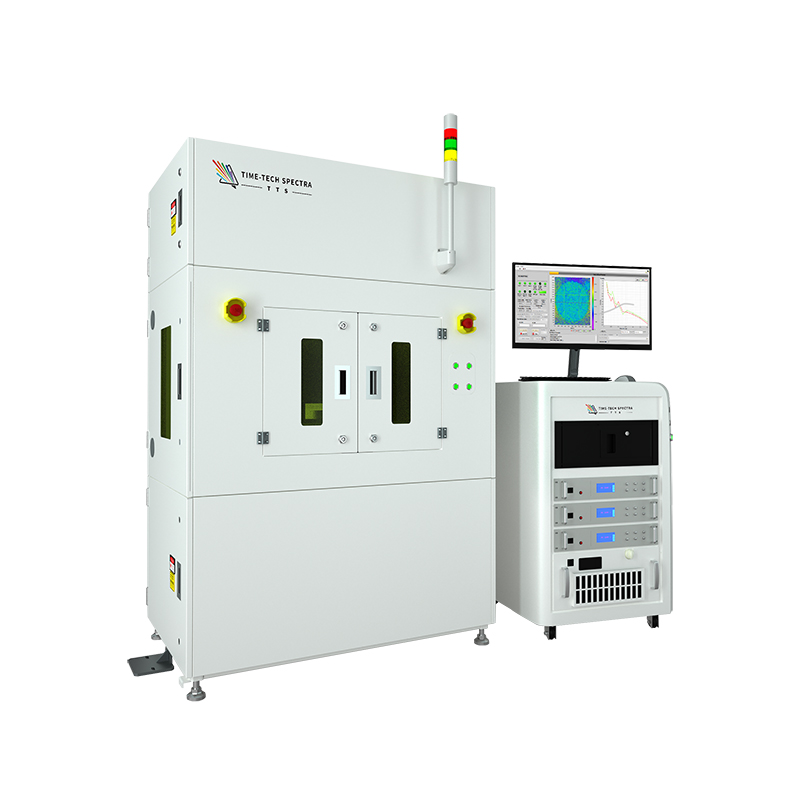

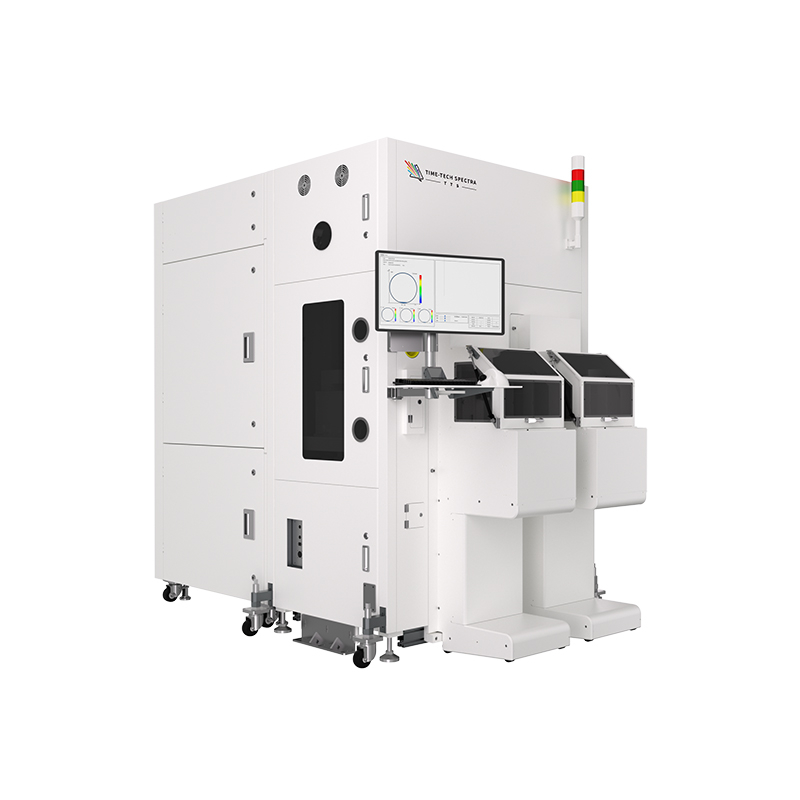

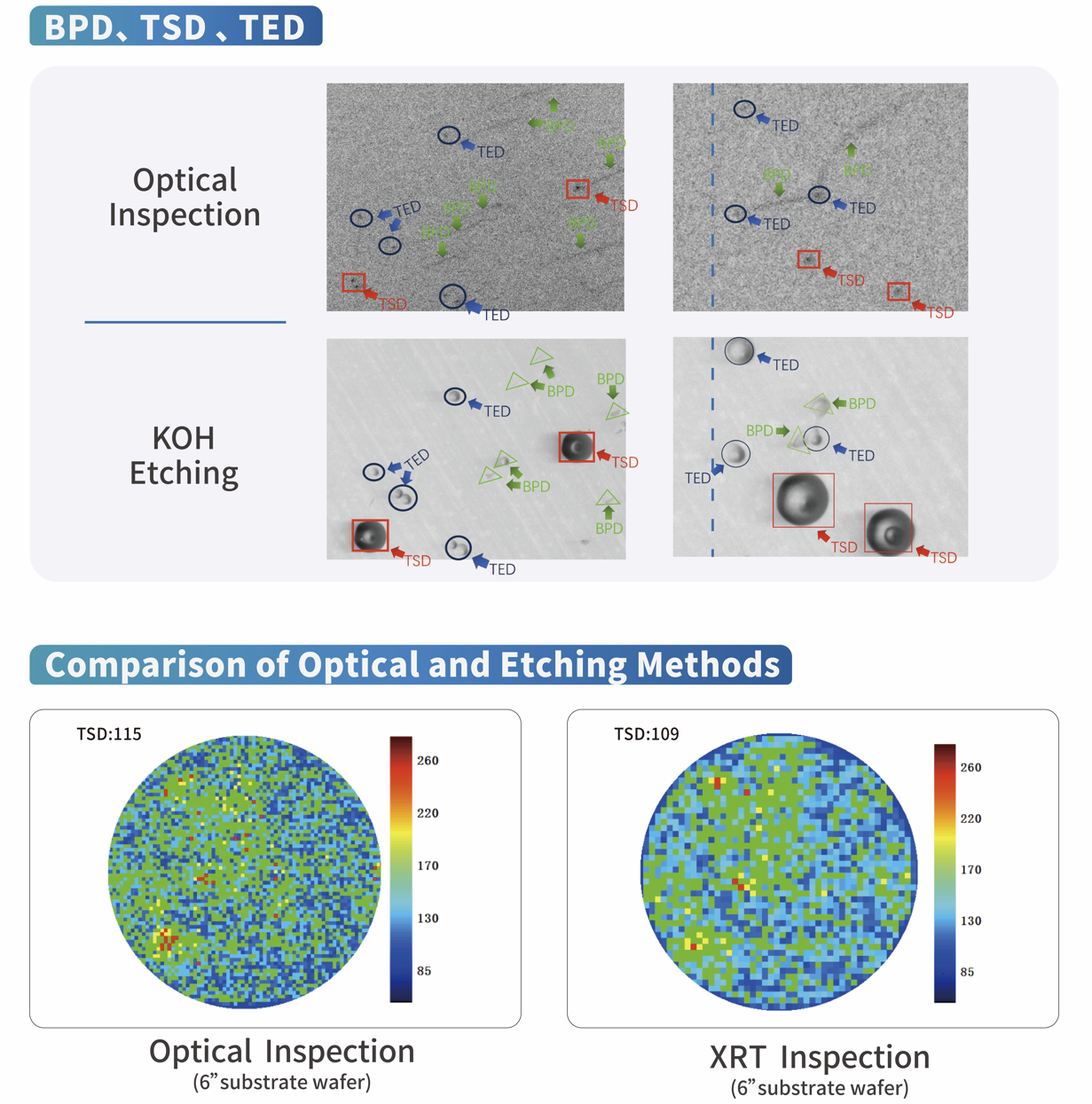

| Designed specifically for SiC substrate wafers and ingot Non-destructive optical inspection to replace destructive KOH etching method High speed detection: < 15 min. per 6' wafer (typ.) AI-enabled accuracy BPD, TSD, TED Identification with > 90% Compatible wafer size and type: 4'/6'/8'; conductive and semi-insulating | |||||||||
